GFCI vs. AFCI: Where Each Belongs and What It Senses
Two protective devices in a house wear nearly the same face: a receptacle-sized front, a TEST button, a RESET button, and the ability to cut a circuit when something goes wrong. So what separates a GFCI from an AFCI, and why does one sit beside a sink and the other on a bedroom circuit?
What each one measures. A GFCI watches where the current goes: what leaves on one conductor against what comes back on the other. An AFCI watches the shape of the current, reading the waveform for the signature of an arc. Neither can do the other's job.
The Failure Each Device Cannot See
Start with what each one misses. That is what makes them two devices instead of one.
A GFCI is blind to a series arc: At a loose terminal, all the current is still on the intended conductors, out on the hot and back on the neutral in equal measure. That match is the only comparison a GFCI makes, so the circuit reads as healthy even while the connection is glowing hot enough to char a device yoke.
An AFCI is blind to a smooth ground fault: A steady leak through wet grout or a corroded appliance chassis produces an ordinary waveform: no erratic starting and stopping, no broadband noise, no arc signature. An AFCI reads the shape of the current, and this shape looks like a load doing its job.
Neither covers the other's blind spot, and neither replaces the overcurrent protection sitting underneath both. The rest comes down to where each measurement fits.
What a Ground Fault Is and How a GFCI Detects It
In a healthy branch circuit, current leaves the panel on the ungrounded conductor, runs through the load, and returns on the grounded conductor. A ground fault is current escaping that loop: through a wet countertop, through the metal frame of an appliance whose insulation has failed, through a person on a damp floor. Less comes back on the neutral than left on the hot.
The sensing element: Inside a GFCI is a ring-shaped sensing coil both conductors pass through. Equal and opposite currents cancel, so the coil produces no net effect. When current leaks away, the cancellation is incomplete, and the coil emits a signal that tracks the mismatch. A solid-state circuit reads it and fires a solenoid that opens the contacts.
Why an ordinary breaker misses it: A breaker responds to total current, because its job is keeping conductors from overheating. A leakage path through a person can be a tiny fraction of the circuit's normal load, far below anything the breaker notices.
What an Arcing Fault Is and How an AFCI Recognizes It
An arc is current crossing a gap it was never meant to cross, jumping through ionized air instead of metal. The temperature at that point is extreme and concentrated in a tiny space, which makes arcing a fire problem rather than a shock problem. It occurs directly against the framing, insulation, and the cable jacket.
Series arcing: A break in the intended path, the arc bridging the gap: a terminal screw backed off, a push-in back-wired connection relaxed after years of thermal cycling, a strand broken inside a flexing cord. Current still reaches the load through the gap, so total circuit current looks normal or lower. Older aluminum branch-circuit conductors are one contributor at terminations.
Parallel arcing: Arcing between conductors through compromised insulation: a finish nail driven through cable inside a wall, a staple set too tight, rodent damage, a lamp cord crushed under a furniture leg. These arcs are violent and brief, self-extinguishing before an overcurrent device responds.
The detection method: An AFCI samples the current waveform continuously. The normal load current repeats in an orderly manner. Arcing current does not: it is erratic, it starts and stops within a single cycle, and it carries high-frequency content across a broad range. The processor compares that against known arc signatures and opens the circuit when the pattern holds.
Where Each Type of Protection Typically Goes and Why

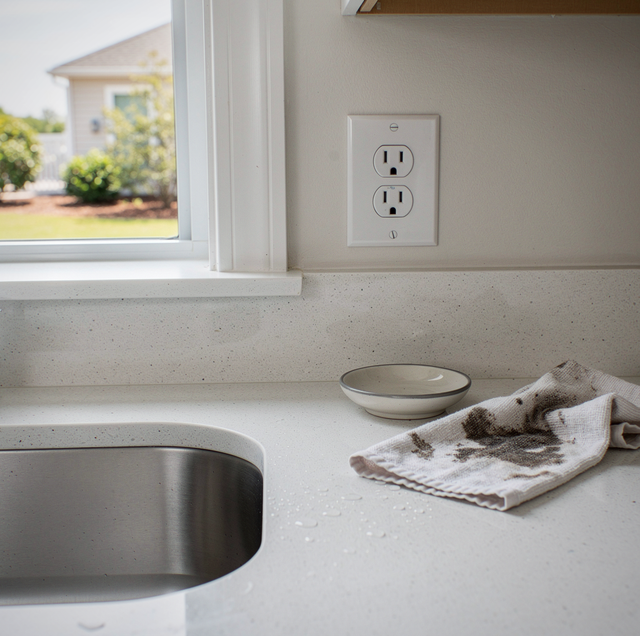

GFCI protection is commonly applied wherever a person can touch an energized part and a grounded surface at once: kitchen countertops, bathrooms, laundry areas, garages, unfinished basements, outdoor receptacles, and pool and spa areas. Water lowers contact resistance, and a metal sink or wet slab is an efficient path back to the source.
AFCI protection is commonly applied to circuits feeding finished living space: bedrooms, living and family rooms, hallways, dining rooms. The reasoning is concealment rather than water. Most of the conductor length runs inside walls and ceilings, where a nail through a cable or a connection loosening over decades cannot be seen or heard until something scorches. A slow ignition in a wall is most dangerous when nobody is awake.
Requirements are a separate question from mechanism: Protection has expanded over time, and what applies to a particular house depends on its jurisdiction, its permit history, and when it was built or last altered. A licensed electrician and the local authority having jurisdiction are the sources for that answer. Read the locations above as where these devices typically land, and why the hazard puts them there.
| Device | What it senses | What it guards against | Where it typically shows up |
|---|---|---|---|
| GFCI | Hot-to-neutral current imbalance | Shock through an unintended path to ground | Kitchens, baths, laundry, garages, basements, outdoors, pool areas |
| AFCI | Arc signature in the current waveform | Fire from an arc at a loose connection or damaged insulation | Circuits serving bedrooms, living areas, hallways |
| Dual-function | Both, in one device | Shock and arc ignition on one circuit | Circuits where both apply, such as kitchen and laundry |
Dual-Function Devices and Where the Protection Sits
Either sensing method can be installed in a receptacle or in a breaker at the head of the circuit. Same idea in a different package, and the choice changes what it covers.
LINE and LOAD terminals: A GFCI receptacle has two sets of terminals. LINE takes the conductors feeding it from the panel; LOAD takes the conductors continuing to the rest of the circuit. When those downstream conductors land on LOAD, every receptacle past that point is covered by that one device. It is why a single device protects several outlets, and why a trip kills power at receptacles nowhere near it. Faceplates on those outlets commonly carry a "GFCI Protected" label so the next person knows the protection comes from elsewhere, though labels get painted over or disappear during remodels.
Sorting LINE from LOAD is electrician work, and trial resets never settle it at the faceplate: conductors landed on the wrong pair leave a device that powers the circuit and protects nothing, with no outward sign. What an installation calls for is a question for a licensed electrician and the local authority having jurisdiction. Your part stops at TEST and RESET.
Why a breaker device covers more: A receptacle device protects itself and whatever is downstream, but not the cable between the panel and its own box. A breaker device sits ahead of it, so the concealed cable is within the protected zone. That matters for arc protection, because a parallel arc from a nail through cable is often upstream of every receptacle.
Dual-function devices: Square D, Siemens, and Eaton all build combination GFCI/AFCI devices in breaker and receptacle form, carrying both sensing methods in one unit for a circuit facing both hazards.
Why These Devices Trip When Nothing Obvious Is Wrong
A tripped GFCI or AFCI is usually reporting a real condition rather than malfunctioning, and the fix is to find it rather than reset past it.
Shared neutrals on multiwire branch circuits: An older practice involved running two hot conductors from opposite legs of the panel and bringing them back to a shared neutral. A device sensing one hot against that shared neutral sees return current that includes another circuit's load, so the arithmetic never balances. It trips at once, or intermittently as the other load changes. Nothing is broken; the sensing method cannot read the circuit as configured, and correcting it is a wiring change.
Older motor loads: A vacuum, a treadmill, a well pump, a freezer compressor. As winding insulation ages, current leaks to the motor frame, exactly the imbalance a GFCI catches. Brush-type motors add a complication: the commutator produces small arcs in normal operation.
Electronic power supplies: LED drivers, laptop chargers, and computer supplies contain filter components that pass a small current to ground on purpose, to suppress electrical noise. One is negligible. If enough of them on one circuit add together, the sum can trip a GFCI past its trip point with nothing faulted.
An AFCI that trips repeatedly may be reporting an arcing fault inside a wall, which is an ignition condition. Repeated resetting is not a fix. Stop using the circuit and have a licensed electrician find the fault.
The Monthly Test Habit and What a Failed Test Means
Manufacturers commonly print a monthly test recommendation on these devices or in the instructions that come with them, and pressing the buttons is the only part that belongs to you. Press TEST: the device should click, and power should drop at it and at anything downstream. Press RESET, and power should come back.
What a failed test means: It fails two ways, and both warrant a call. In the first, TEST does nothing and power stays on. In the second, the device trips but does not reset, meaning either the protection has reached the end of its life or something on the circuit is holding the fault open.
A device that does not drop power when you press TEST is providing no protection, even though the outlet still works. Nothing about its behavior reveals that. Treat that receptacle as dead protection and have a licensed electrician replace it.
Self-testing devices: Newer GFCI and AFCI devices run an internal self-check on a repeating cycle without anyone pressing anything. When that check fails, the device signals its own end of life through an indicator light or by refusing to reset. Replacing it is electrician work.
Frequently Asked Questions
Yes. It compares the hot and neutral conductors, so it requires no equipment grounding conductor to detect an imbalance. On a two-wire ungrounded circuit, the faceplate carries a no-equipment-ground marking, so the next person knows the receptacle provides shock protection but not the ground path surge protectors expect. It is a recognized use, not a substitute for rewiring.
Ground-fault protection of equipment, sometimes shortened to GFPE, is a different class of device used on heat-trace cable and certain large equipment feeds. It responds to leakage at a level chosen to prevent equipment damage, not to protect a person from electric shock, and it is not interchangeable with a personnel-rated GFCI.
Devices listed for damp locations carry a weather-resistant marking, usually "WR" on the face, and use corrosion-resistant components and internal sealing. They are typically installed inside a cover rated for the location, including deep in-use covers that close over a connected plug, because rain and spray reaching the contacts corrode a device from the inside. Which cover an installation calls for is a question for a licensed electrician and the local authority having jurisdiction.
Yes. In-line and plug-in GFCI units are built into some extension cords and sold as adapters; they are common on job sites and with generators. They protect only what is plugged into them, and only while in place. They are the one type worth testing before every use, since they get dropped and coiled in a way a wall device never is.
Often, yes. Many dual-function breakers include a trip indicator, a small light with a blink pattern or a mechanical flag, that separates a ground fault from an arc fault from a plain overcurrent event. An electrician reads it alongside what the circuit feeds and what was running, which narrows the search.
At the wet locations, not at the panel. The device holding the circuit open is almost always in a bathroom, a garage, a laundry area, or on an exterior wall, so an electrician walks those first and presses RESET on each. The awkward ones are hidden: a receptacle behind a garage freezer, one inside a basement stairwell, one in a closet that used to be a bathroom. Finding it is a walk of the whole floor, not a look at the room that went dark.
Have a licensed electrician map the GFCI and AFCI protection on your circuits — you will know which outlets are covered, which devices still trip on test, and where the gaps are. Castles Electrical serves Virginia Beach, Chesapeake, and Norfolk. Call (757) 765-8222.
