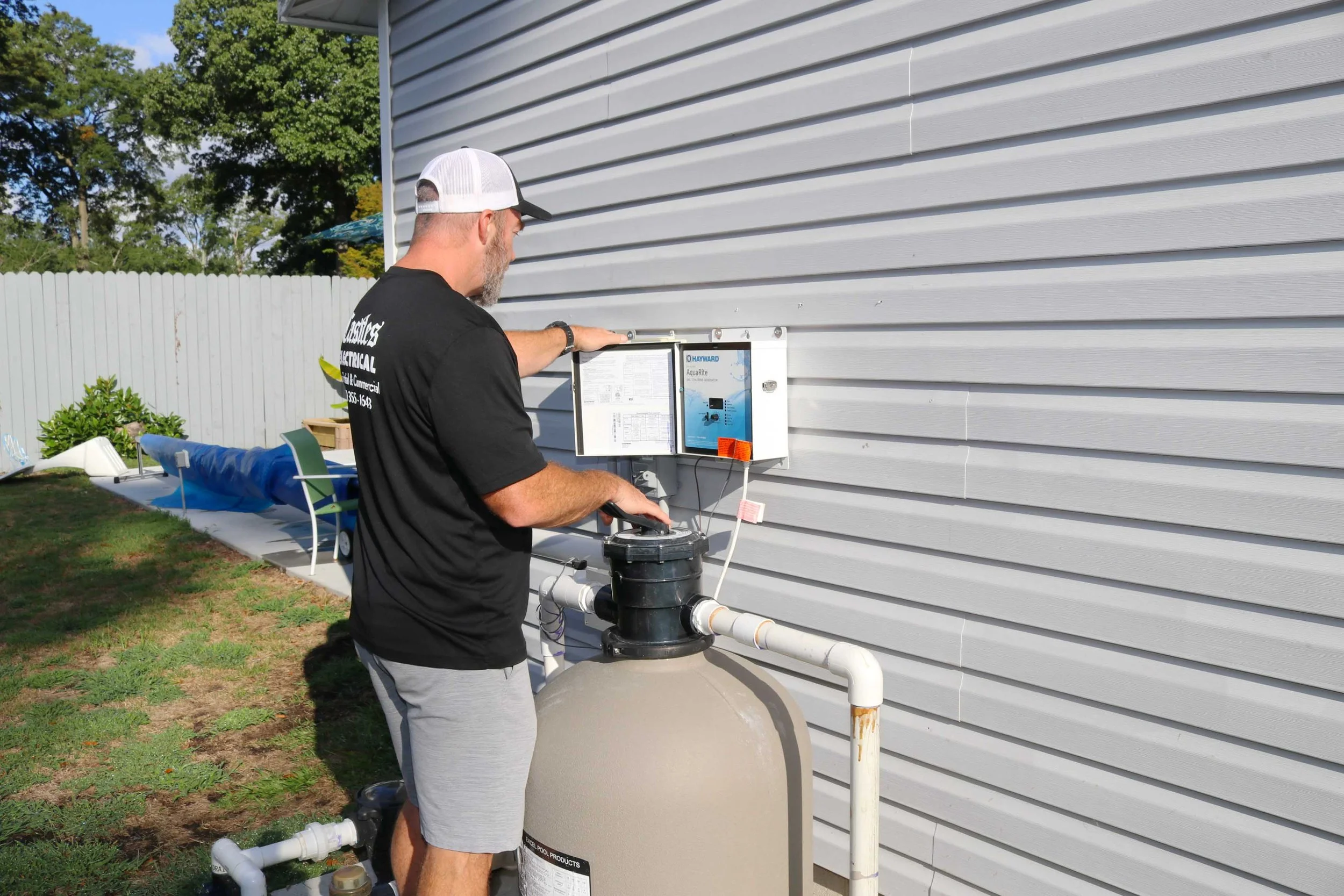

Pool & Spa Wiring in Portsmouth, VA

03 — Equipment Pad

Where the Equipment Pad Sits on the Site Plan

Portsmouth requests a site plan showing the pool’s dimensions and construction, including walks, fence enclosures, and proposed distances to lot lines. The handout also says appurtenant structures and equipment, such as showers, dressing rooms, and equipment houses, including plumbing, electrical, and HVAC systems, must comply with the code and the authority having jurisdiction.

For wiring, the equipment pad is the decision that shapes everything else. Its location sets the length of the feeder from the panel, the route the buried conduit takes across the yard, and where the disconnect ends up.

Your pool builder or site plan preparer draws the plan. Bring us into that conversation before the plan goes to the city, so the electrical route is settled on paper first. Equipment placement also has to work with the city’s yard setback rules, which the Zoning office or your builder can confirm for your lot.

04 — Panel Capacity

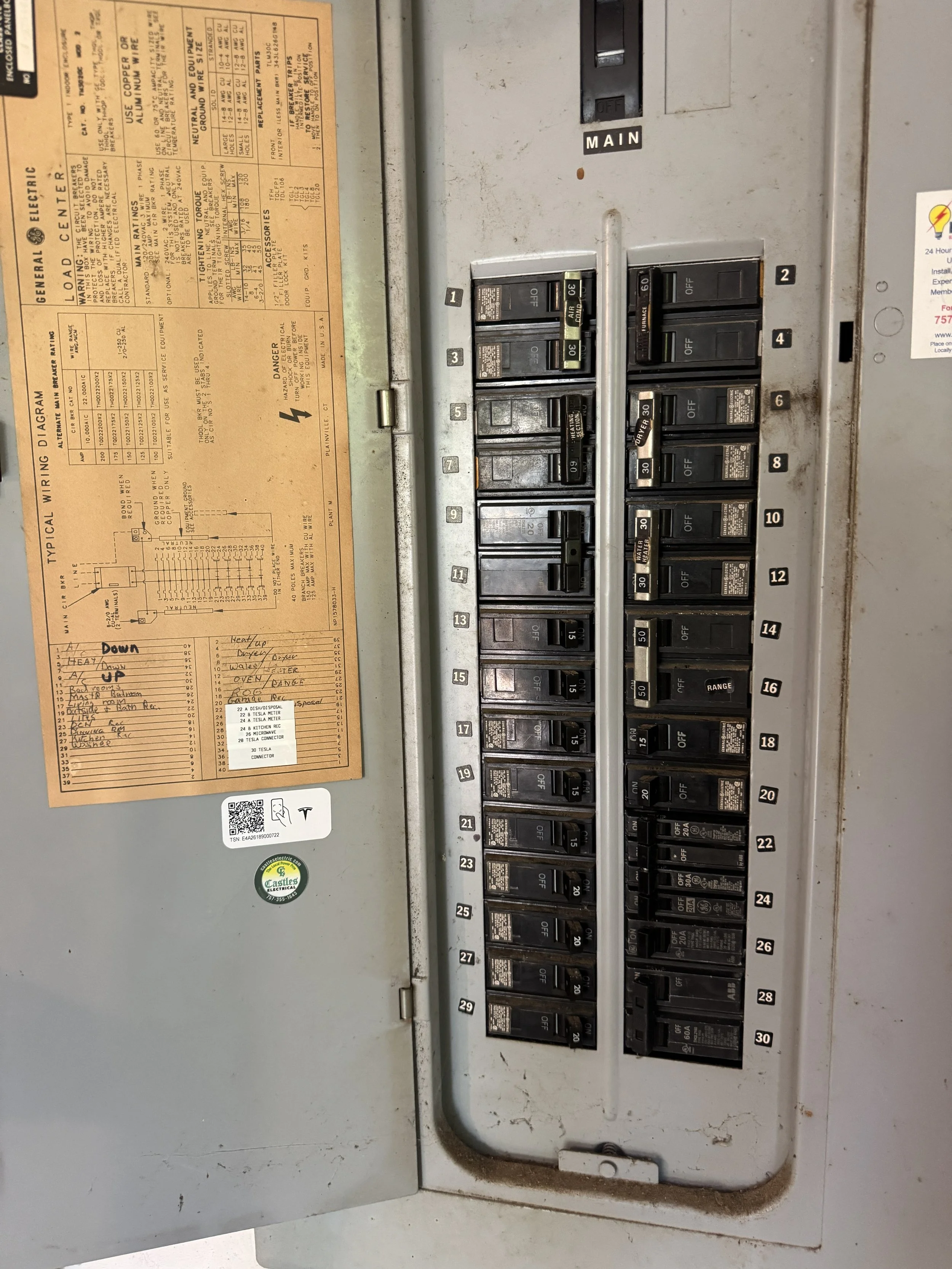

Panel Room for a Pump, Heater, and Spa

A pool project rarely adds one circuit. A pump, a heater or heat pump, lighting, and a hot tub can each want their own, and a panel in an older house may have few open spaces and a service sized for a smaller load list.

We look at the panel and the service before quoting the pool work. If the existing panel can carry the new circuits, the estimate says so. If it needs more room, a subpanel or a service upgrade can be planned as part of the same project, and the city’s permit guide lists service upgrades, panels, and subfed panels among the work that requires an electrical permit.

05 — Pump Motor Replacement

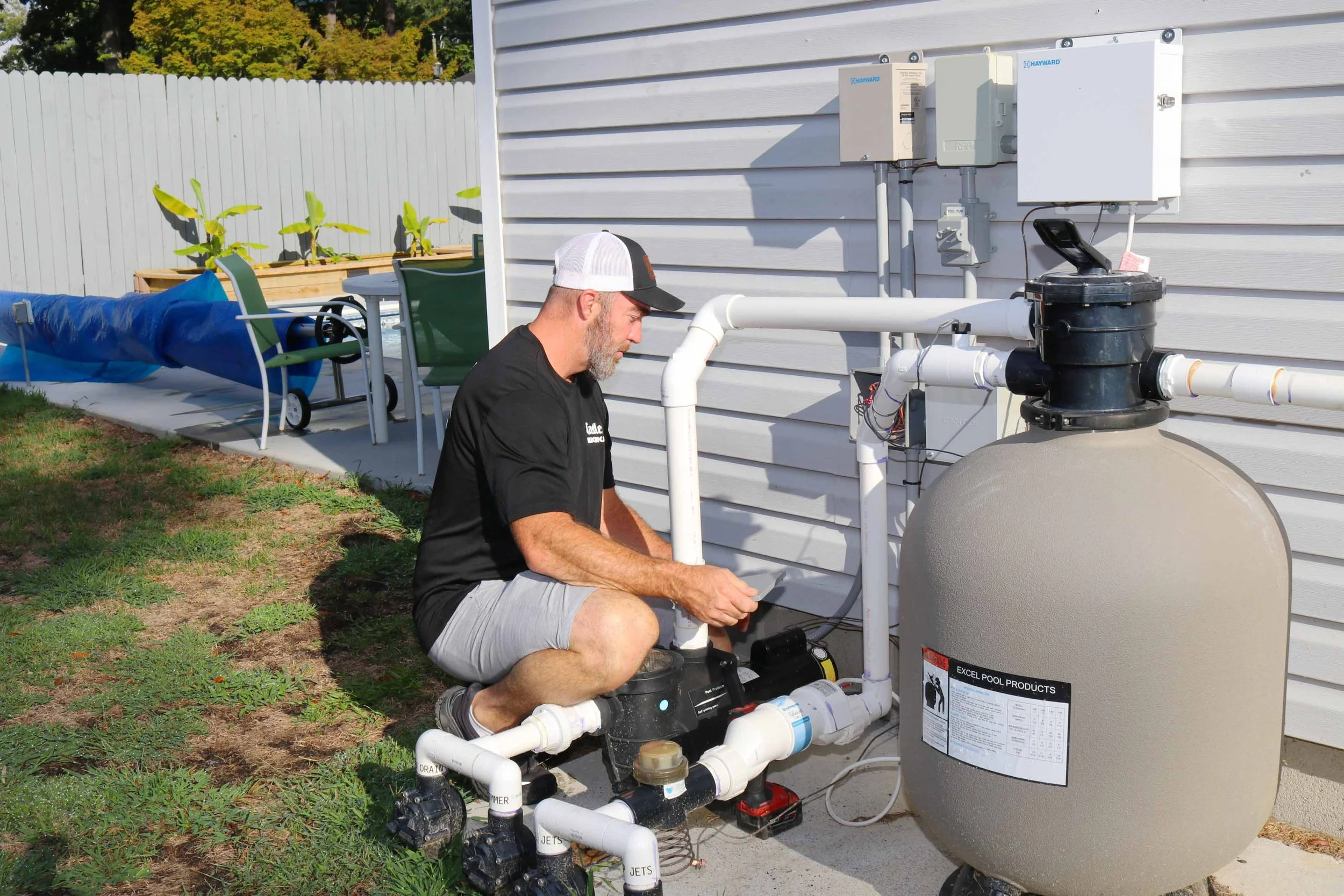

Replacing a Pump Motor on an Older Portsmouth Pool

If your pool went in decades ago, its circuits may predate the current electrical code. That history comes into play the day a pump motor fails.

What the 2020 code says about pump motors

Virginia’s current building code uses the 2020 National Electrical Code. Section 680.21(C) of that edition calls for Class A GFCI protection on outlets supplying all pool pump motors connected to single-phase, 120-volt through 240-volt branch circuits rated 150 volts or less to ground and 60 amps or less, whether by receptacle or by direct connection.

The replacement trigger

Section 680.21(D) adds that when a pool pump motor covered by that rule is replaced for maintenance or repair, the replacement motor must be provided with GFCI protection. So a motor swap on an older pool can mean updating the protection on the circuit feeding it.

The original circuit may have met the code of its day. When your pool service technician replaces a motor, we can check the circuit, add GFCI protection where required, and let you know whether the work requires a Portsmouth electrical permit.
