02 — Emergency Disconnect
The Outdoor Emergency Disconnect Question
Section E3601.8 of the 2021 Virginia Residential Code covers one- and two-family homes. It calls for a disconnect outside the house that is easy to reach and can shut off all power coming in from the utility. The disconnect must also carry a short-circuit current rating equal to or greater than the fault current the utility can deliver at that service, so the rating must match the service it protects.
Why a replacement raises the question
The surge protection section in the same chapter (E3606.5.3) says plainly that its rules apply where service equipment is replaced. Section E3601.8 contains no matching sentence, and articles and contractor sites interpret that silence differently. Because the replacement question is open, the inspector’s reading for your house counts.
03 — Disconnect Types
Three Kinds of Outdoor Disconnect
Section E3601.8 lists three types of outdoor emergency disconnect, each with required markings. The right column is a general planning note, and the actual layout depends on the house and on the inspector’s requirements.
Castles confirms the arrangement for your service at the estimate visit.
04 — Planning the Location
Planning Where the New Equipment Goes

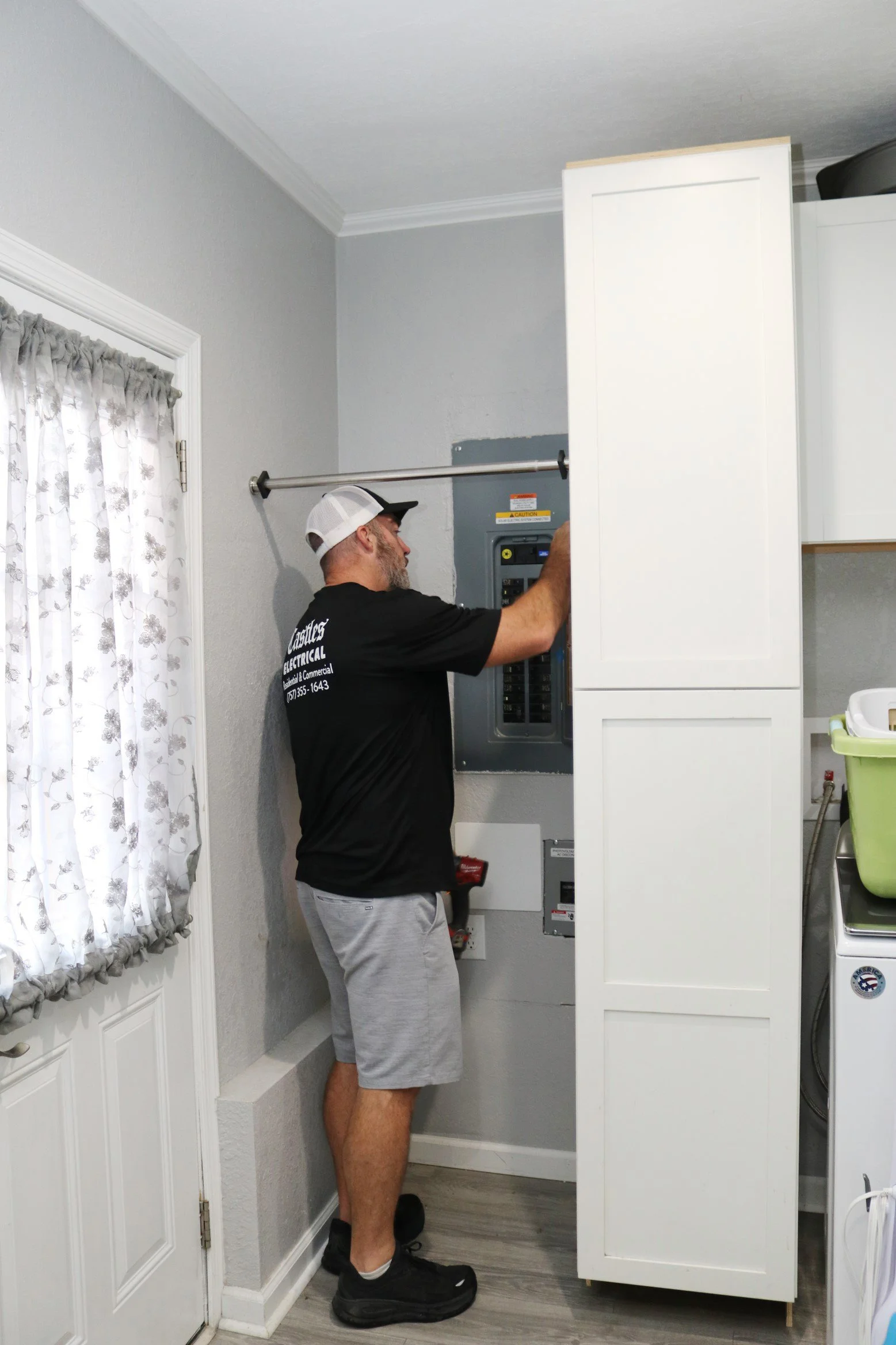

The old fuse box location is the starting point, and it may have to change. Fuse boxes were often tucked into a closet, a pantry, or a corner behind a water heater. A closet location can push the new panel to another wall.

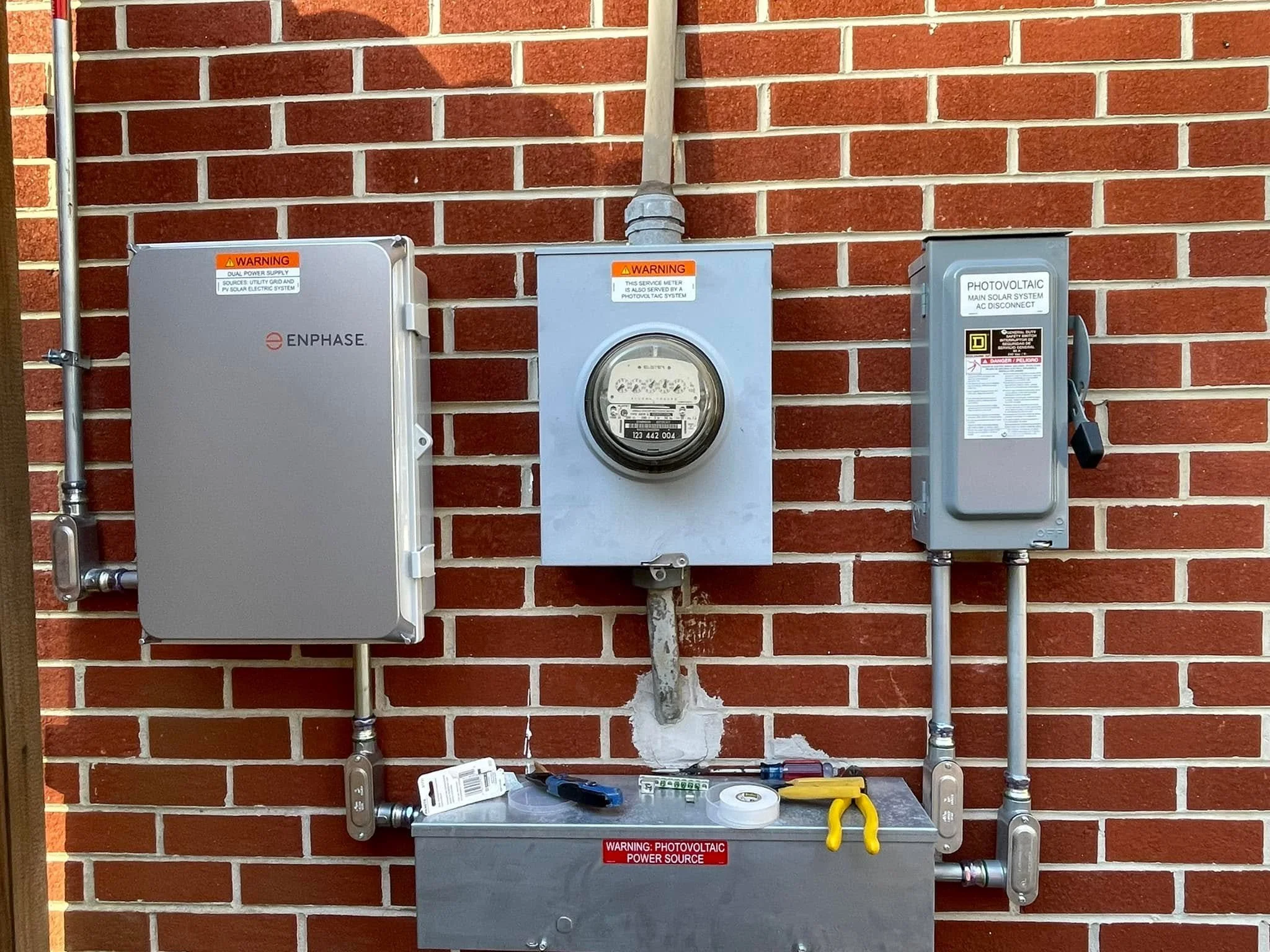

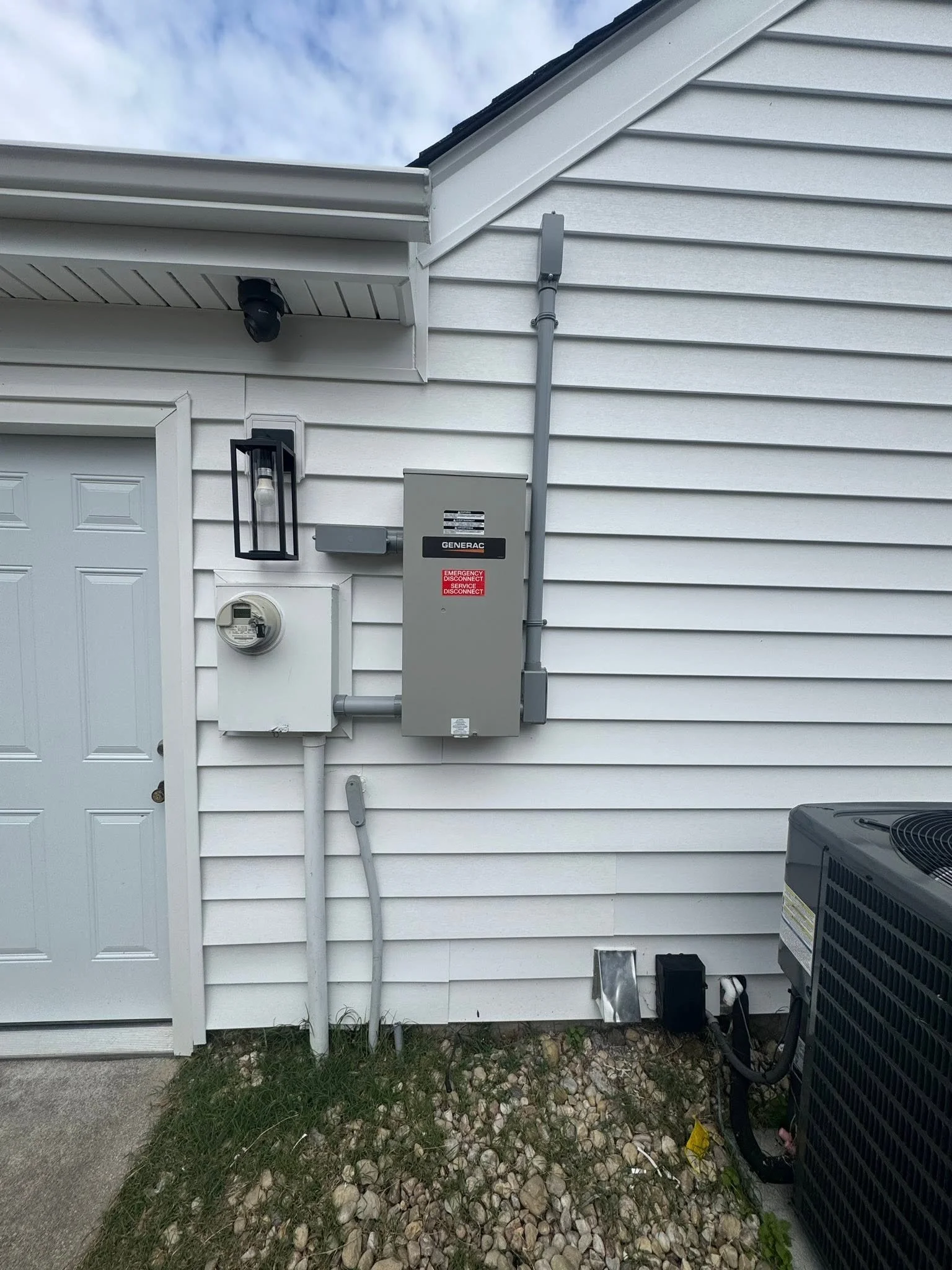

Any outdoor disconnect has to be readily accessible, and if there is more than one, they must be grouped. On many Chesapeake houses, that points to the meter wall, so the path from the outside equipment to the indoor panel is part of the plan from the first visit.
Which of the three disconnect types fits depends on what is already on that wall: where the meter base sits, how the service reaches it, and how far the indoor panel will be from it. Those details are noted at the estimate visit, so the permit application and the inspection start from the same plan.
05 — Which Code Applies
Which Code a Replaced Fuse Box Answers To
Replacing a fuse box is generally treated as an alteration under Virginia’s 2021 Existing Building Code. The new panel and any outdoor disconnect are installed to current rules, while the rest of the house is judged on what the job actually changes. The building official makes the final call on how the work is classified.
The code defines a Level 1 alteration as the removal and replacement of existing equipment with new equipment that serves the same purpose. A fuse box giving way to a breaker panel reads naturally as that kind of work. Fairfax County’s plain-language guide to Virginia’s existing building code puts it simply: the existing level of safety must be maintained, and new materials must comply.
06 — Reading the Old Box
Reading an Older Chesapeake Fuse Box Before It Comes Out
Before the old box comes off the wall, we record which fuse feeds each circuit, which circuits serve the range, dryer, well pump, or other large loads, and where the service enters the house. That map guides the new panel’s layout.
Circuits that need work beyond the panel go on a separate list. Some owners follow up with an electrical safety inspection, while others plan to rewire an older Chesapeake home in stages.
07 — Process
How a Chesapeake Fuse Box Replacement Comes Together
Estimate visit
We review the fuse box, the meter, and the service entrance. For some panel jobs, photos are enough to start, and you receive a free written installation estimate honored for 30 days.
Code check
We work out how the outdoor emergency disconnect rule applies to your service and where the equipment will go. That answer sets whether the outdoor equipment is a service disconnect, a meter disconnect, or a separate switch.
Permit and utility scheduling
Castles files the electrical permit and coordinates the shutoff with Dominion Energy.
Replacement day

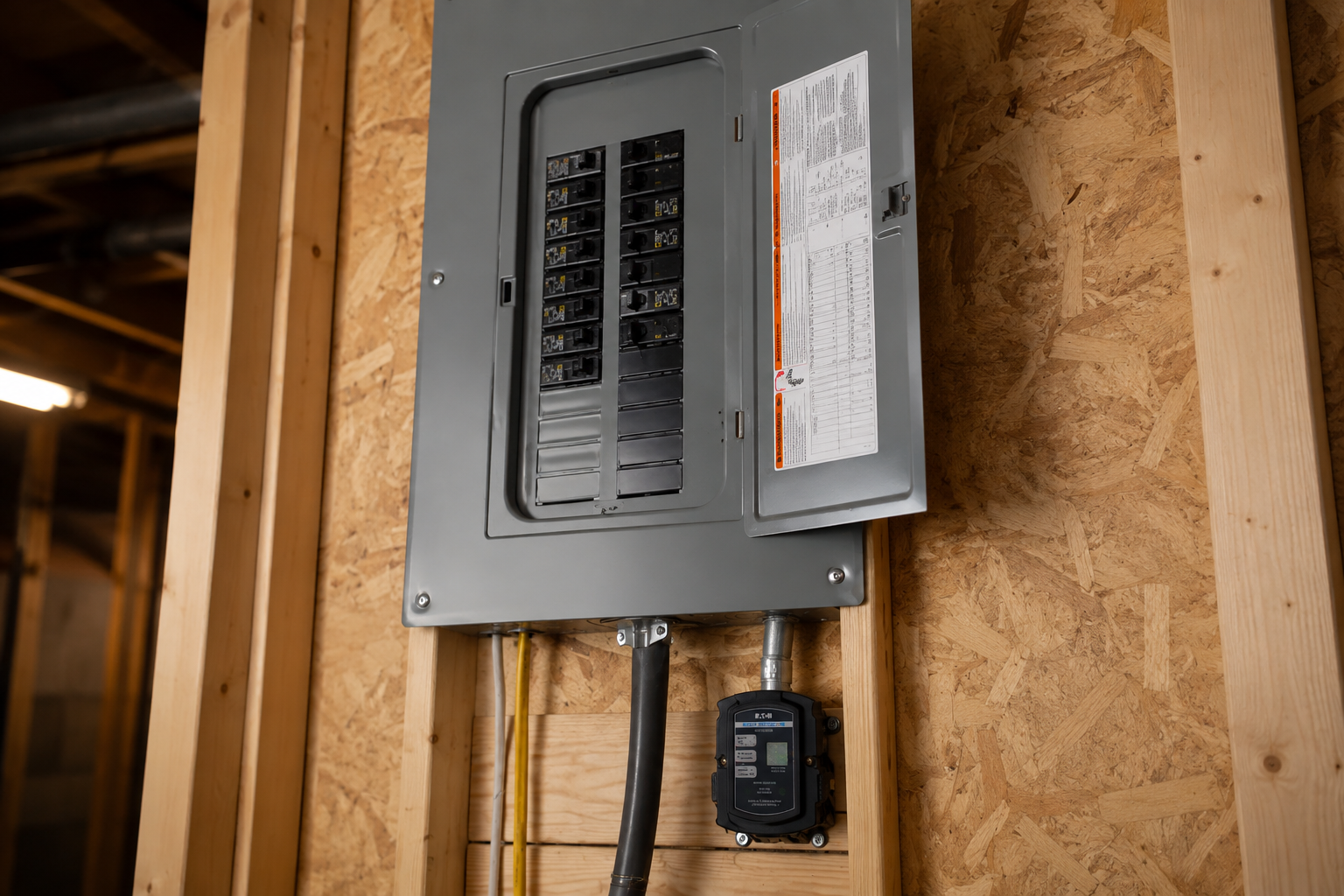

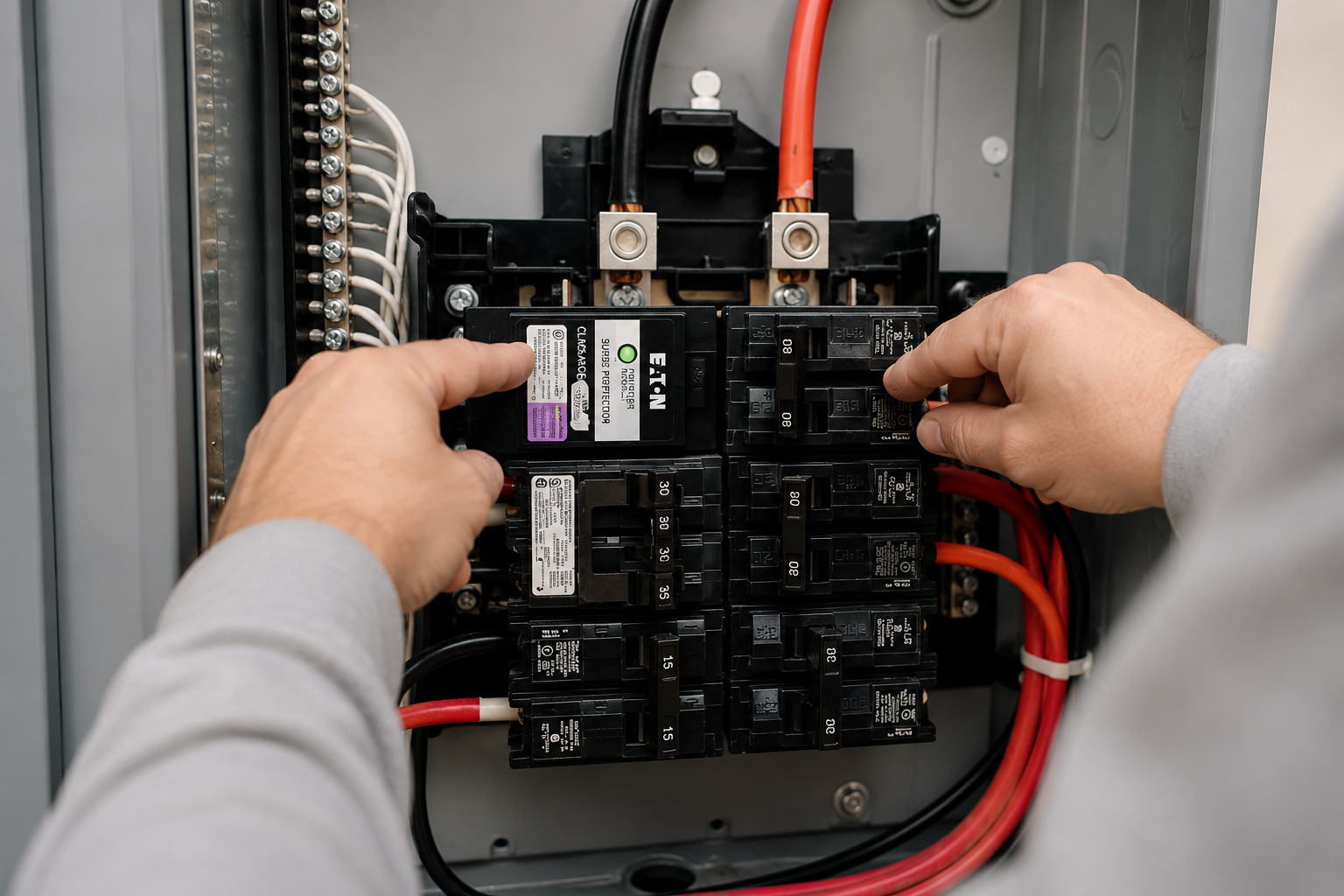

The fuse box is removed, the breaker panel is installed along with the service-entrance work the permit and inspector require, surge protection is added where code calls for it, and circuits are traced and labeled.
Power back on, labels read out

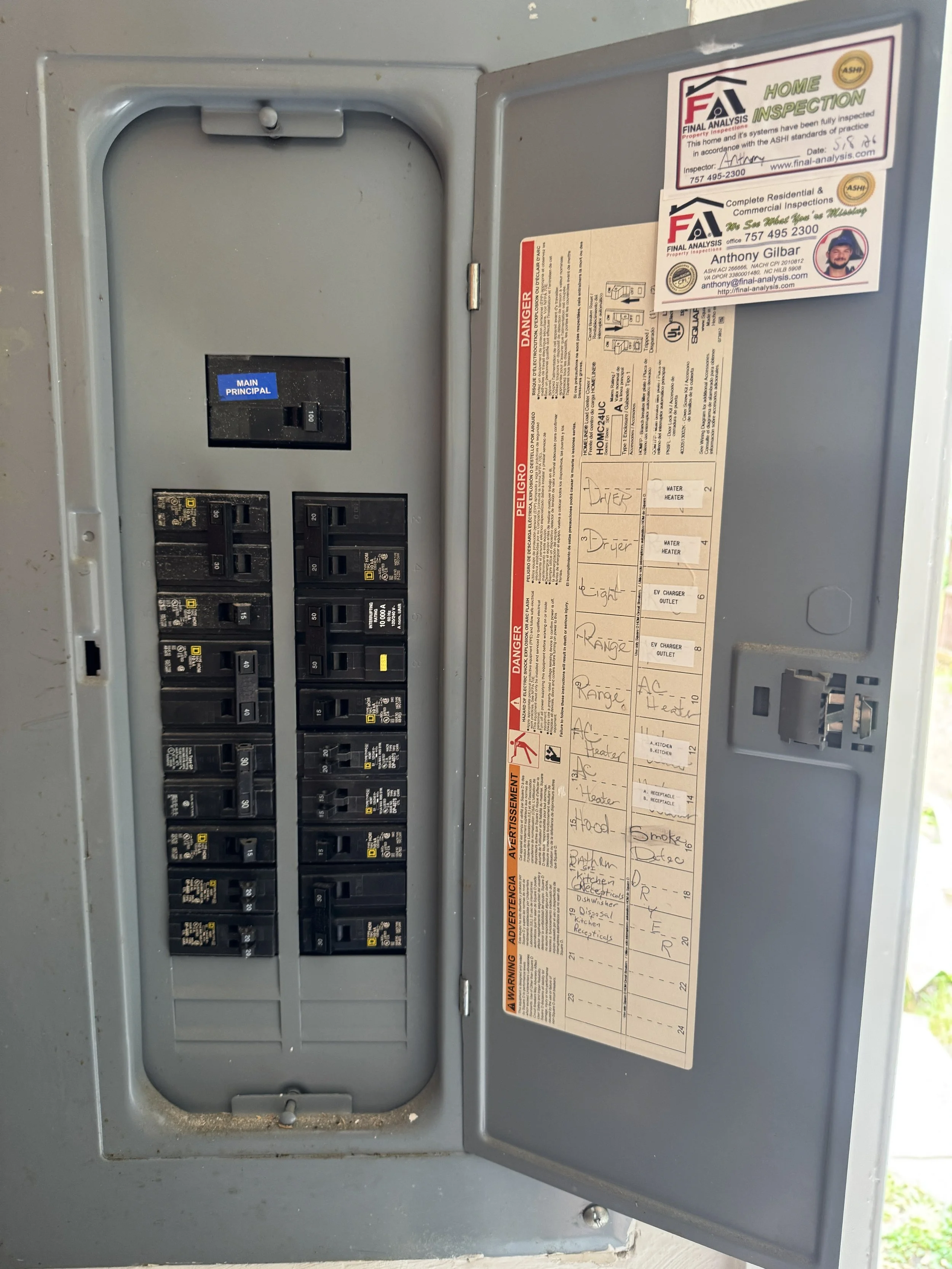

After the city inspection and with power restored, we walk the new panel with you and read the directory out circuit by circuit.
08 — Why Castles
Why Chesapeake Owners Call Castles for Fuse Box Replacement
Where the panel goes is settled before the box comes off the wall
The indoor spot and whatever the inspector wants outside are worked out at the estimate visit.
The same electricians start the job and finish it
Castles staff take it from the old fuse box through the final inspection, with nothing subcontracted.
09 — Proof
A Panel Replacement Done Right
One homeowner had a panel replaced and upgraded and called it a fantastic job.
From our five-star Google reviews
Google 5.0 Rated by Hampton Roads Customers
Castles Electrical maintains a 5.0 rating on Google. The reviews below load as a live widget, so this page shows current feedback from real Castles Electrical customers.
